Souprava sondy TP20 #2 (A-1371-0291)

The TP20 is a compact module changing touch-trigger probe. The two-piece design, comprising of a probe body and detachable stylus module(s), allows the use of a range of stylus configurations and extensions to access features on complex parts. Modules can be changed manually or automatically without the need for requalification of the stylus tip.

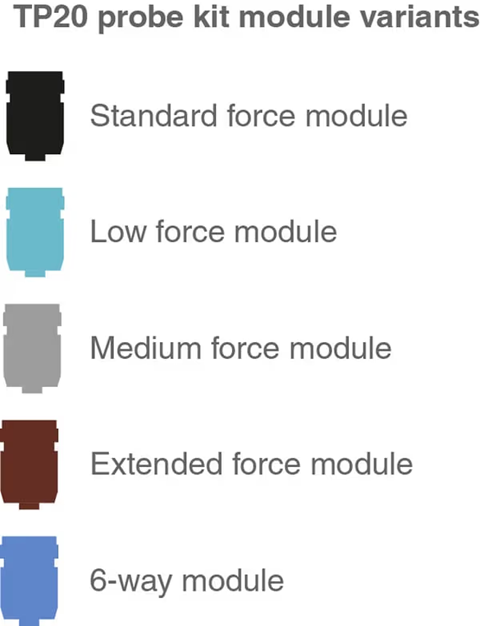

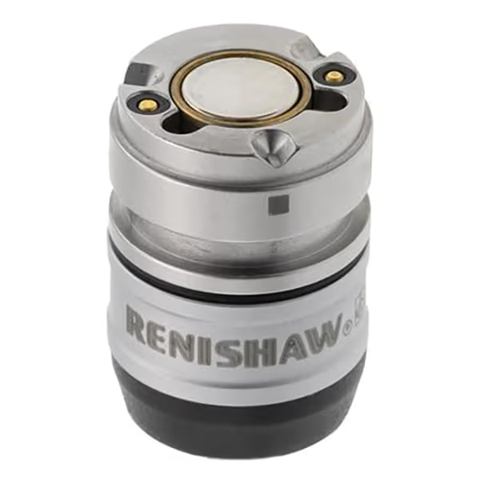

The standard force probe module is identified by a black cap. This probe module is suited to the majority of applications requiring extensions up to 50 mm long.

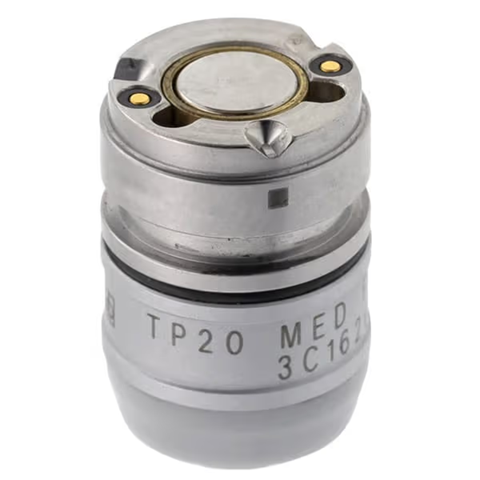

The medium force probe module is identified by a grey cap. This probe module is designed for applications where a higher trigger force than standard is required.

Includes:
1 × TP20 probe body
1 × standard force module
1 × medium force module

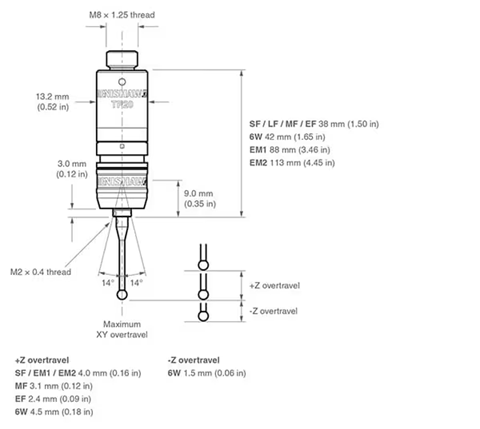

The recommended stylus limits for the standard and medium force probe modules are:
Straight styli up to 50 mm long
Any stylus type up to 60 mm long
Star and cranked styli up to 20 mm offset
