Upínacie prípravky pre SMS eco-fix súprava 98 ks Form L KOMEG (K551549-10)
Popis

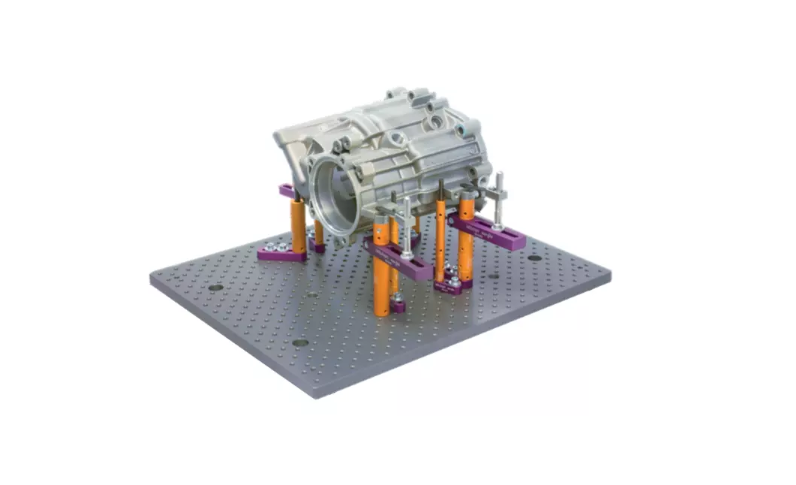

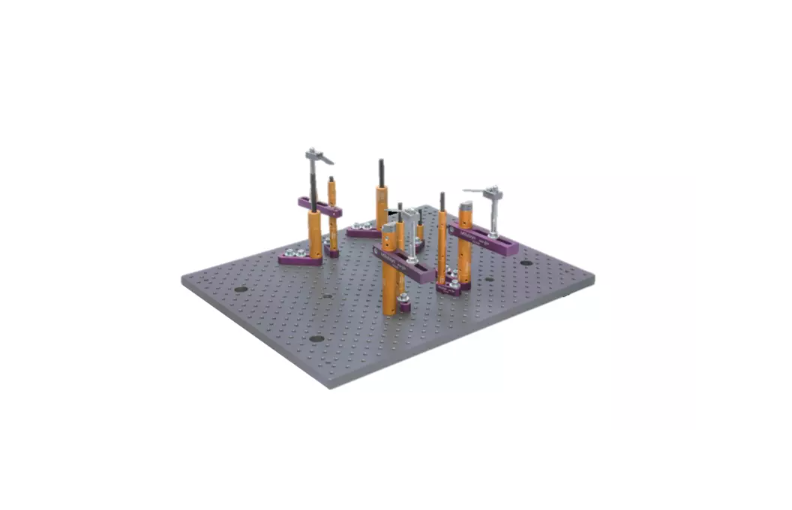

This eco-fix modular CMM fixturing kit can be used to for safe, flexible and repeatable clamping of a huge variety of parts. Scope of delivery: ● basic eco-fix system components, ● 500 mm x 400 mm base plate with M6 threaded hole grid with a 12.5 mm / 25 mm grid distance. For easy CMM mounting and serial measurements, please check our manual loading receiver system.
| Application: | CMM |
| Product line: | eco-fix |
| Component type: | Kit |
| Units: | 98 |

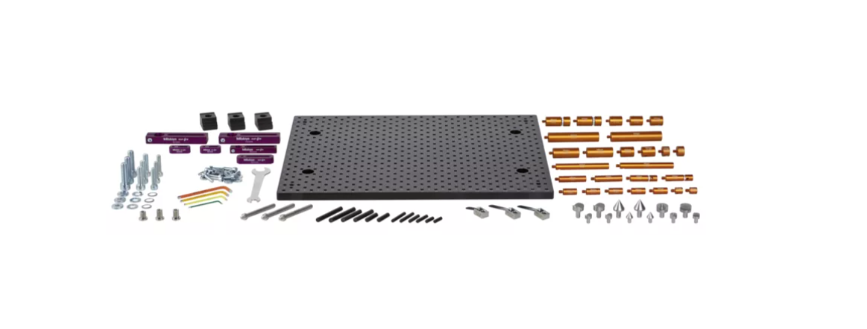

Part No. Qty. Part name Base Components Base plate K551533 1 Base plate 500 mm x 400 mm K551032 3 Clamping claw Build up Components Columns K551024 2 Location pin ø 12 mm x 13 mm K551025 2 Location pin ø 12 mm x 25 mm K551026 2 Location pin ø 12 mm x 50 mm K551027 2 Location pin ø 12 mm x 100 mm K551028 2 Location pin ø 20 mm x 13 mm K551029 2 Location pin ø 20 mm x 25 mm K551030 2 Location pin ø 20 mm x 50 mm K551031 2 Location pin ø 20 mm x 100 mm K551040 2 Adjustable location pin ø 20 mm K551041 2 Adjustable location pin ø 12 mm K551042 3 Location pin ø 12 mm with bore 6 mm K551043 3 Location pin ø 20 mm with bore 8 mm Brackets K551035 2 Receiver bracket small K551036 1 Receiver bracket large K551044 1 Receiver bracket L = 90 mm, ø 12 mm K551045 2 Receiver bracket L = 120 mm, ø 20 mm K551046 1 Slot nut for receiver bracket h = 12 mm K551047 2 Slot nut for receiver bracket h = 15 mm Positioning Components K550262 2 V-block mini, ø 12 mm K550261 2 Cone receiver mini, ø 12 mm K550250 1 Stopper element mini, ø 6 mm K550247 1 Back square mini, ø 6 mm K550058 2 V-block K550365 2 Cone Receiver K550982 1 Stopper element K550248 1 Back square K550888 2 Straight pin ø 6 mm x 20 mm K550889 2 Straight pin ø 6 mm x 30 mm K550890 2 Straight pin ø 6 mm x 40 mm K550000 2 Straight pin ø 8 mm x 30 mm K550001 2 Straight pin ø 8 mm x 50 mm K550002 2 Straight pin ø 8 mm x 65 mm Clamping Components K550716 3 Straight pin with thread, M6 x 75 mm K550279 2 Spring clip, ø 8 mm, L = 60 mm K550554 1 Spring clip, ø 8 mm, L = 40 mm Screws and Washers K550563 6 Cylinder head screw M6 x 25 mm K550110 6 Cylinder head screw M6 x 20 mm K550591 12 Washer ø 6.4 mm x ø 17 mm Tools K551050 1 Allen key 2 mm K551051 1 Allen key 3 mm K551052 1 Allen key 4 mm K551053 1 Allen key 5 mm K551054 1 Double open-ended spanner 10-17 Total 98
Technická špecifikácia
Parametry produktu
| Provedení |
Provedení
sada |
