Upínacie prípravky pre SMS eco-fix súprava 59 ks Form S KOMEG (K551048-10)
Popis

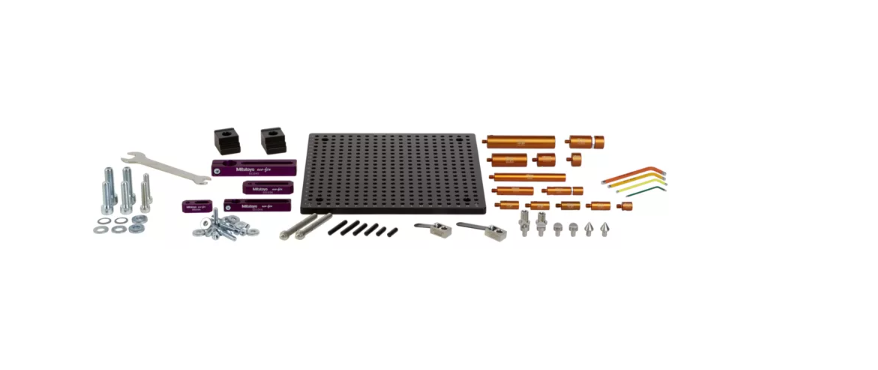

Scope of delivery:
● basic eco-fix system components.

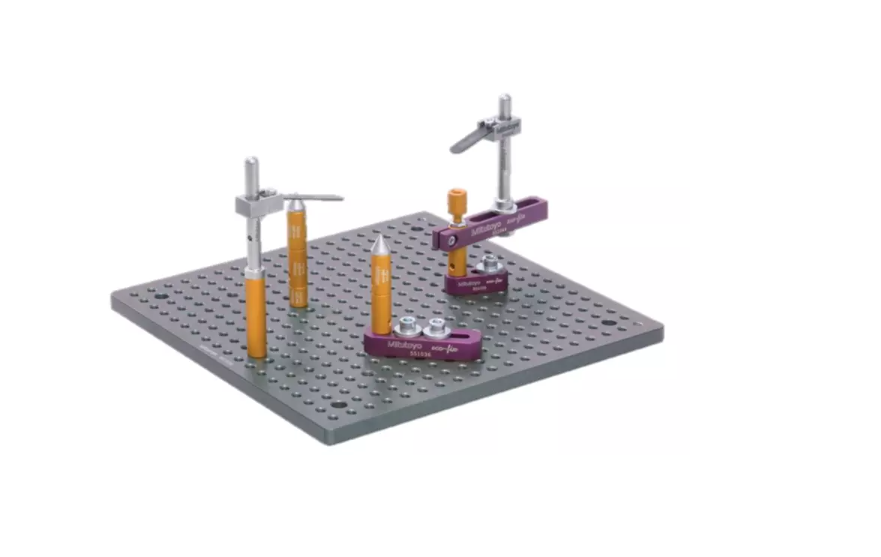

● 250 mm x 250 mm base plate with M6 threaded hole grid with a 12.5 mm grid distance.
For easy CMM mounting and serial measurements, please check our manual loading receiver system.
| Application: | CMM |
| Product line: | eco-fix |
| Component type: | Kit |
| Units: | 59 |
Part No. Qty. Part name Base Components Base plate K551034 1 Base plate 250 mm x 250 mm K551032 2 Clamping claw Build up Components Columns K551024 1 Location pin ø 12 mm x 13 mm K551025 1 Location pin ø 12 mm x 25 mm K551026 1 Location pin ø 12 mm x 50 mm K551027 1 Location pin ø 12 mm x 100 mm K551028 1 Location pin ø 20 mm x 13 mm K551029 1 Location pin ø 20 mm x 25 mm K551030 1 Location pin ø 20 mm x 50 mm K551031 1 Location pin ø 20 mm x 100 mm K551040 1 Adjustable location pin ø 20 mm K551041 1 Adjustable location pin ø 12 mm K551042 3 Location pin ø 12 mm with bore 6 mm Brackets K551035 1 Receiver bracket small K551036 1 Receiver bracket large K551044 1 Receiver bracket L = 90 mm, ø 12 mm K551045 1 Receiver bracket L = 120 mm, ø 20 mm K551046 1 Slot nut for receiver bracket h = 12 mm K551047 1 Slot nut for receiver bracket h = 15 mm Positioning Components K550262 2 V-block mini, ø 12 mm K550261 2 Cone receiver mini, ø 12 mm K550250 1 Stopper element mini, ø 6 mm K550247 1 Back square mini, ø 6 mm K550888 2 Straight pin ø 6 mm x 20 mm K550889 2 Straight pin ø 6 mm x 30 mm K550890 2 Straight pin ø 6 mm x 40 mm Clamping Components K550716 2 Straight pin with thread, M6 x 75 mm K550279 1 Spring clip, ø 8 mm, L = 60 mm K550554 1 Spring clip, ø 8 mm, L = 40 mm Screws and Washers K550563 2 Cylinder head screw M6 x 25 mm K550110 6 Cylinder head screw M6 x 20 mm K550591 8 Washer ø 6.4 mm x ø 17 mm Tools K551050 1 Allen key 2 mm K551051 1 Allen key 3 mm K551052 1 Allen key 4 mm K551053 1 Allen key 5 mm K551054 1 Double open-ended spanner 10-17 Total 59
