Popis

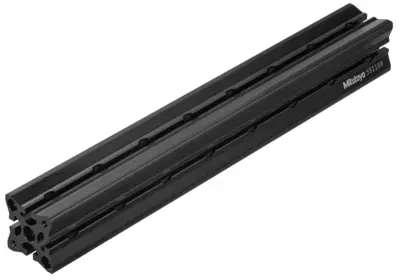

The multiflexprofile series from Mitutoyo combines in one profile the advantages of three different kinds of profiles for modular fixture construction.
Dovetail profile
- Flexible repositioning with slider elements for rapid and cost effective changes of fixture points.
Grid profile
- Benefit from a fixed 50 mm positioning grid for the reproducible addition of features.
T-nut profile
- Additions can de added and freely positioned in the t-nut profile.
- Can be combined with all kinds of profiles and add-on parts, even from third parties.
Multiflexprofile are compatible with the Mitutoyo multiflexprofile frames and are ideal for combining with the vari-fix clamping columns.
| Application: | CMM |
| Product line: | multiflexprofile |
| Component type: | Profile component |
| Units: | 1 |
| Length 1: | 400 mm |
| Width 1: | 50 mm |
| Height 1: | 50 mm |
| Bore Ø a: | 12,5 |
| T slot: | Yes |
