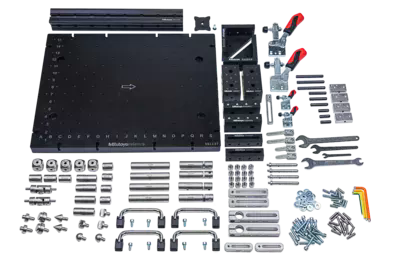

Súprava pre motory eco-fix plus, doska 500x400x25 mm, 177 dielov CMM fixtures, eco-fix plus KOMEG (K551290)
| Pôvodná cena | 4 781 EUR |
| Vaša cena bez DPH | 4 255 EUR |
4 255 EUR / ks | |
| DPH: | 23% |
| Jednotka: | ks |
| Kód 1: | K551290 |
| Značka: | Mitutoyo |
Popis
It significantly reduces the requirement for custom-made solutions due to weight or dimension.
Repeatable set-up configurations and high durability are only some of the advantages this product range has to offer.
Scope of delivery:
- basic eco-fixplus system components
- 4pcs. handles for easy handling of fixture and workpiece
- 400 mm multiflexprofile stand-off for best support of large workpieces
- 500 mm x 400 mm x 25 mm base plate with M6 threaded hole grid with a 50 mm grid distance
Fully compatible with the eco-fix product range.
Application: Product line: Component type: Units: Obsahuje: Qty. Part name Base components Base plate K551137 1 Base plate eco-fix plus 500x400mm Handles K551199 2 2pcs. Handles for eco-fix base plates Build up Components Columns K551109 1 multiflexprofile 400mm K651115 1 Cover plate multiflexprofile Build-up plates K550597-10 2 Mounting cuboid for module assembly K550601-10 2 Mounting plate for module assembly K550521-10 2 Cube M6 K550509-10 2 Angle 100/100 f. right-angled connection K550461-10 16 Bushing; ø12,49mm Columns K551061 2 Adjustable receiver bushing, 8H7 bore K551249 2 Adjustable location pin with M6 thread. K550521-10 3 Cube M6 K550529-10 2 Joint eco-fixplus K551237 4 Location pin eco-fixplus ø20x25mm K551238 4 Location pin eco-fixplus ø20x50mm K551239 4 Location pin eco-fixplus ø20x100mm K551240 3 Location pin eco-fixplus ø8H7 Brackets K550345-10 2 Receiver bracket M6 L=100 K551246 2 Receiver bracket eco-fixplus M6 L=70mm K551247 2 Receiver bracket eco-fixplus L=120mm K550605-10 2 Receiver bracket w.pin hole L = 100 mm Positioning Components K550073 2 Cylinder pin insert Ø 22,0-26,0mm K550067 2 Cylinder pin insert Ø 10,0-20,0mm K550248 1 Backsquare insert ø 20 mm K550365 2 Cone receiver insert ø 20 mm K550982 2 Stopper insert ø 20 mm K551072 2 Sphere top insert ø 20 mm K550000 3 Straight pin stopper d=8mm L=30mm K550001 3 Straight pin stopper d=8mm L=50mm K550003 3 Straight pin stopper d=8mm L=80mm K550557-10 16 Headless screw 25,0 mm K550592-10 16 Headless screw 20,0 mm Clamping Components K550554 2 Spring clip bore Ø = 8 mm L = 40 mm K550279 2 Spring clip bore Ø = 8 mm L = 60 mm K550716 4 Straight pin for spring clips ø 12 mm K550009-10 2 Toggle clamp M8 K550522-10 4 Fastening element for toggle clamps K550536-10 1 Extension Bracket for K550009 K550010-10 2 Toggle clamp, small M4 Screws K550564 20 Screw M 6 x 30mm K550591 20 Washer 6,4mm x 17mm Tools K551054 1 Double open-ended spanner SW 10-17 K551050 1 Allen key 2 mm K551051 1 Allen key 3 mm K551053 1 Allen key 5 mm K550367 1 Open-end spanner SW 19 K550131 1 Open-end spanner SW 7 K550130 1 Open-end spanner SW 13 Total 177
Médiá
Technická špecifikácia
Parametry produktu
| Provedení |
Provedení
sada |
