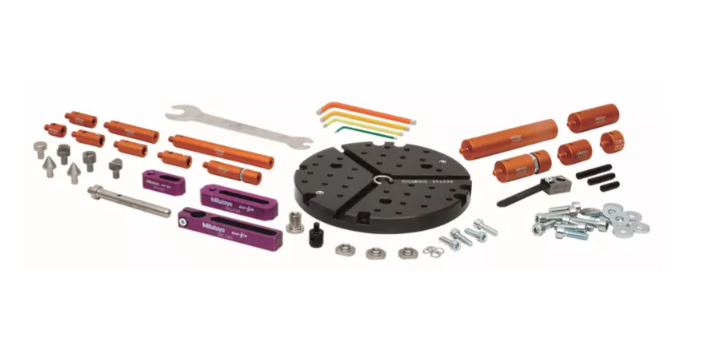

Súprava eco-fix Typ S, 53 ks CMM fixtures, eco-fix KOMEG (K551133)
| Pôvodná cena | 990 EUR |
| Vaša cena bez DPH | 881 EUR |
881 EUR / ks | |
| DPH: | 23% |
| Jednotka: | ks |
| Kód 1: | K551133 |
| Značka: | Mitutoyo |
Popis
For quick application set up, it is fully compatible with:
- Turntables: RA-10, RA-120, RA-120P, RA-1600
- Theta 1 axis: SV-, SV-C-, CS- and FTA-Types
- basic eco-fix system components
- Ø150 mm base plate
Popis: Pro rychlé nastavení aplikace. Je plně kompatibilní s: Točny: RA-2200, RA-H5200, RA-2200CNC, RA-H5200CNC Osa Theta 1: typy SV-, SV-C-, CS- a FTA Rozsah dodávky: ● základní komponenty systému eco-fix. ● Základní deska Ø200 mm Hmot.: Application: FMI Product line: Component type: Units: Obsahuje: Qty. Part name Base Components Base plate K551038 1 Adapter plate ø 150 mm Build up Components Columns K551024 1 Location pin ø 12 mm x 13 mm K551025 1 Location pin ø 12 mm x 25 mm K551026 1 Location pin ø 12 mm x 50 mm K551027 1 Location pin ø 12 mm x 100 mm K551028 1 Location pin ø 20 mm x 13 mm K551029 1 Location pin ø 20 mm x 25 mm K551030 1 Location pin ø 20 mm x 50 mm K551031 1 Location pin ø 20 mm x 100 mm K551040 1 Adjustable location pin ø 20 mm K551041 1 Adjustable location pin ø 12 mm K551042 3 Location pin ø 12 mm with bore 6 mm Brackets K551035 1 Receiver bracket small K551036 1 Receiver bracket large K551044 1 Receiver bracket L = 90 mm, ø 12 mm K551046 1 Slotted nut for receiver bracket h = 12 mm Positioning Components K550262 1 V-block mini, ø12mm K550261 2 Cone receiver mini, ø12 mm K550250 1 Stopper element mini, ø 6 mm K550247 1 Back square mini, ø 6 mm K550058 1 V-block K550888 2 Straight pin ø 6 mm x 20 mm K550889 2 Straight pin ø 6 mm x 30 mm K550890 2 Straight pin ø 6 mm x 40 mm Clamping Components K550716 1 Straight pin with thread, M6 x 75 mm K550279 1 Spring clip, ø 8 mm, L = 60 mm Screws and Washers K550563 6 Cylinder head screw M6 x 25 mm K550110 8 Cylinder head screw M6 x 20 mm K550591 1 Washer ø 6.4 mm x ø 17 mm Tools K551050 1 Allen key 2 mm K551051 1 Allen key 3 mm K551052 1 Allen key 4 mm K551053 1 Allen key 5 mm K551054 1 Double open-ended spanner 10-17 Total 52
Technická špecifikácia
Parametry produktu
| Provedení |
Provedení
sada |
