Súprava eco-fix plus L, doska 500x400x25 mm, 167dielna CMM fixtures, eco-fix plus KOMEG (K551289)
| Pôvodná cena | 3 834 EUR |
| Vaša cena bez DPH | 3 412 EUR |
3 412 EUR / ks | |
| DPH: | 23% |
| Jednotka: | ks |
| Kód 1: | K551289 |
| Značka: | Mitutoyo |
Popis
It significantly reduces the requirement for custom-made solutions due to weight or dimension.
Repeatable set-up configurations and high durability are only some of the advantages this product range has to offer.

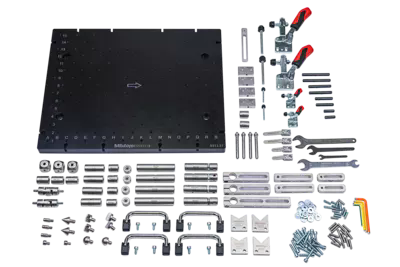

Scope of delivery:
- basic eco-fixplus system components
- 4pcs. handles for easy handling of fixture and workpiece
- 500 mm x 400 mm x 25 mm base plate with M6 threaded hole grid with a 50 mm grid distance
Fully compatible with the eco-fix product range.
Application: Product line: Component type: Units: Obsahuje: Qty. Part name Base Components Base plate K551137 1 Base plate eco-fixplus 500x400mm Handles K551199 2 2pcs. Handles for eco-fix base plates Build up Components Columns K551061 2 Adjustable receiver bushing, 8H7 bore K551249 2 Adjustable location pin with M6 thread. K550521-10 3 Cube M6 K550529-10 2 Joint eco-fixplus K551236 4 Location pin eco-fixplus Ø20,0 x 13,0mm. K551237 4 Location pin eco-fixplus ø20x25mm K551238 4 Location pin eco-fixplus ø20x50mm K551239 4 Location pin eco-fixplus ø20x100mm K551240 3 Location pin eco-fixplus ø8H7 Brackets K550345-10 2 Receiver bracket M6 L=100 K551246 2 Receiver bracket eco-fixplus M6 L=70mm K551247 2 Receiver bracket eco-fixplus L=120mm K551248 1 Receiver bracket eco-fixplus L=170mm Positioning Components K550335-10 3 Connector with 8 mm fitting bore. K550340 2 Prism 90° K550341 2 Prism 120° K550058 2 V-anvil insert ø 20 mm K550248 2 Backsquare insert ø 20 mm K551072 2 Sphere top insert ø 20 mm K550365 2 Cone receiver insert ø 20 mm K550982 2 Stopper insert ø 20 mm K550000 2 Straight pin stopper d=8mm L=30mm K550001 2 Straight pin stopper d=8mm L=50mm K550002 2 Straight pin stopper d=8mm L=65mm K550003 2 Straight pin stopper d=8mm L=80mm K550557-10 16 Headless screw 25,0 mm K550592-10 16 Headless screw 20,0 mm Clamping Components K550554 2 Spring clip bore Ø = 8 mm L = 40 mm K550279 2 Spring clip bore Ø = 8 mm L = 60 mm K550716 4 Straight pin for spring clips ø 12 mm K551242 2 Magnetic receiver K550009-10 2 Toggle clamp M8 K550012-10 2 Pressure spindle M8 K550522-10 4 Fastening element for toggle clamps K550536-10 1 Clamping extension M8 for K550009 K550010-10 2 Toggle clamp M4 K550013-10 2 Pressure spindle M4, L = 28,0 mm Screws K550564 20 Screw M 6 x 30mm K550591 20 Washer 6,4mm x 17mm Tools K551054 1 Double open-ended spanner SW 10-17 K551050 1 Allen key 2 mm K551051 1 Allen key 3 mm K551052 1 Allen key 4 mm K551053 1 Allen key 5 mm K550367 1 Open-end spanner SW 19 K550131 1 Open-end spanner SW 7 K550130 1 Open-end spanner SW 13 Total 166
Médiá
Technická špecifikácia
Parametry produktu
| Provedení |
Provedení
sada |
