Vybavenie a príslušenstvoUpínacie prípravkySúprava eco-fix opti S, 45-dielna CMM/Vision fixtures, eco-fix/opti-fix KOMEG (K551233)

Súprava eco-fix opti S, 45-dielna CMM/Vision fixtures, eco-fix/opti-fix KOMEG (K551233)

Tento tovar je na predaj len registrovaným

Pôvodná cena	1 249 EUR
Vaša cena bez DPH	1 111 EUR
1 111 EUR / ks

Nie je na sklade

DPH:	23%
Jednotka:	ks
Kód 1:	K551233
EAN:	4250516616974
Značka:	Mitutoyo

Popis

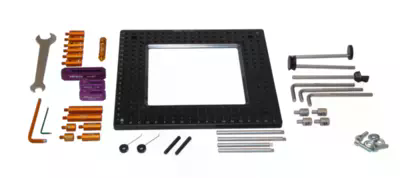

This eco-fix/opti-fix modular fixturing kit can be used to for safe, flexible and repeatable clamping of a huge variety of parts. The centric glass insert of the base plate makes it ready for use with optical systems with conour illumination too.
Scope of delivery:

basic eco-fix system components.
basic opti-fix components.
250 mm x 250 mm base plate with M6 threaded hole grid with a 12.5 mm grid distance 160 mm x 160 mm glass insert.

Application:	CMM
Application:	Vision
Product line:	eco-fix
Product line:	opti-fix
Component type:	Kit
Units:	45
Obsahuje:	Part No.	Qty.	Part name
	Base Components
	Base plate
	K551215	1	Base plate eco-fix/opti-fix for contour illumination measurement 250 mm x 250 mm
	Build up Components
	Columns
	K551024	2	Location pin ø 12 mm x 13 mm
	K551025	2	Location pin ø 12 mm x 25 mm
	K551026	2	Location pin ø 12 mm x 50 mm
	K551189	4	Adapter eco/opti-fix ø 6 mm
	K551041	1	Adjustable location pin ø 12 mm
	K551042	6	Location pin ø 12 mm with bore 6 mm
	Brackets
	K551035	2	Receiver bracket small
	K551036	1	Receiver bracket large
	Positioning Components
	K550302	2	Receiver pin stepped L = 80 mm
	K550303	2	Receiver pin stepped L = 100 mm
	K550990	1	Rectangular receiver pin L = 50 mm
	K550323	2	Rectangular receiver pin L = 25 mm
	K550971	1	Prismatic receiver / locator
	K550972	1	Prismatic eccentric receiver
	K550970	1	Eccentric receiver
	K550889	1	Straight pin 6 x 30 mm
	K550890	2	Straight pin ø 6 mm x 40mm
	Clamping Components
	K550980	2	Spring clip large 30°
	Screws and Washers
	K550563	3	Cylinder head screw M6 x 25 mm
	K550591	3	Washer ø 6.4 mm x ø 17 mm
	Tools
	K551050	1	Allen key 2 mm
	K551053	1	Allen key 5 mm
	K551054	1	Double open-ended spanner 10-17
	Total	45
