Sonda sada TP20 #1 - 2 moduly SF (A-1371-0290)

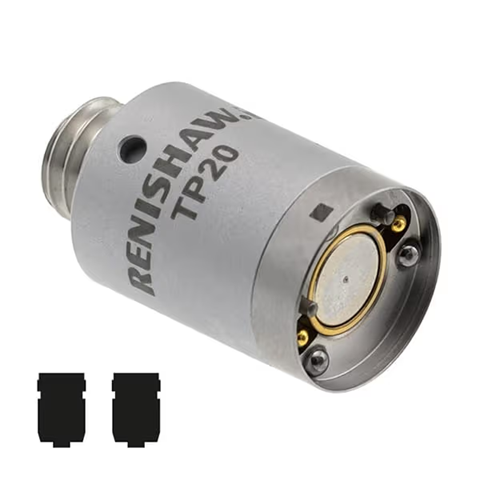

The TP20 is a compact module changing touch-trigger probe. The two-piece design, comprising of a probe body and detachable stylus module(s), allows the use of a range of stylus configurations and extensions to access features on complex parts. Modules can be changed manually or automatically without the need for requalification of the stylus tip.

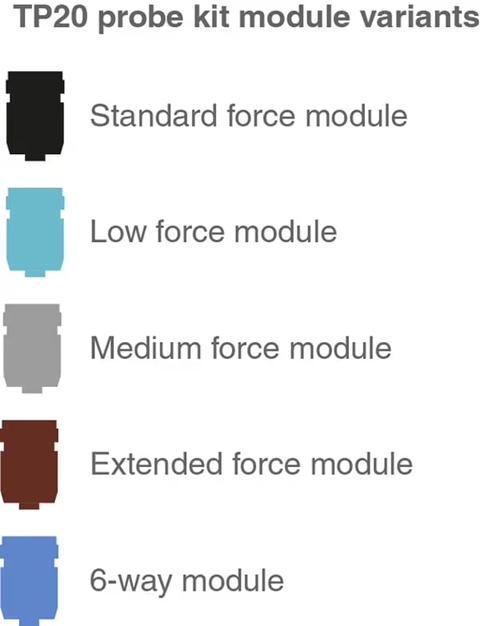

The standard force probe module is identified by a black cap. This probe module is suited to the majority of applications requiring extensions up to 50 mm long.:

Includes:
1 × TP20 probe body

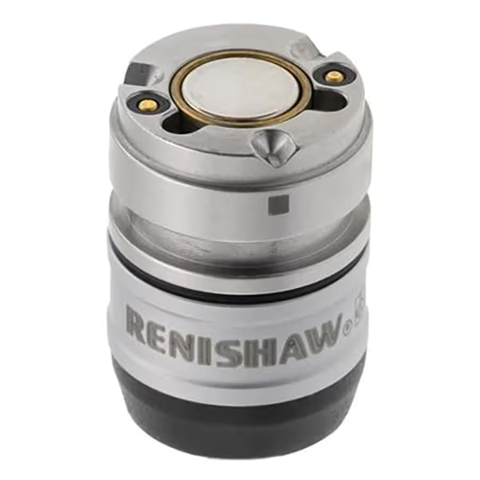

2 × standard force modules

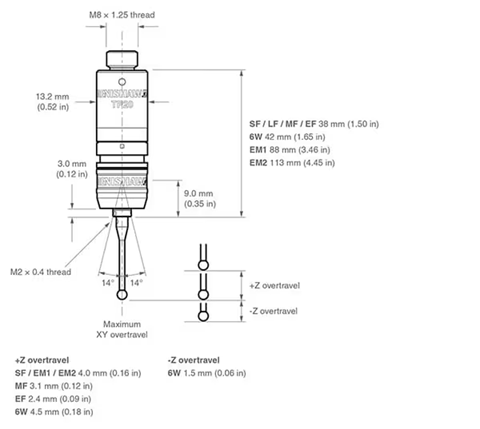

The recommended stylus limits for the standard force probe module are
Straight styli up to 50 mm long
Star and cranked styli up to 20 mm offset
