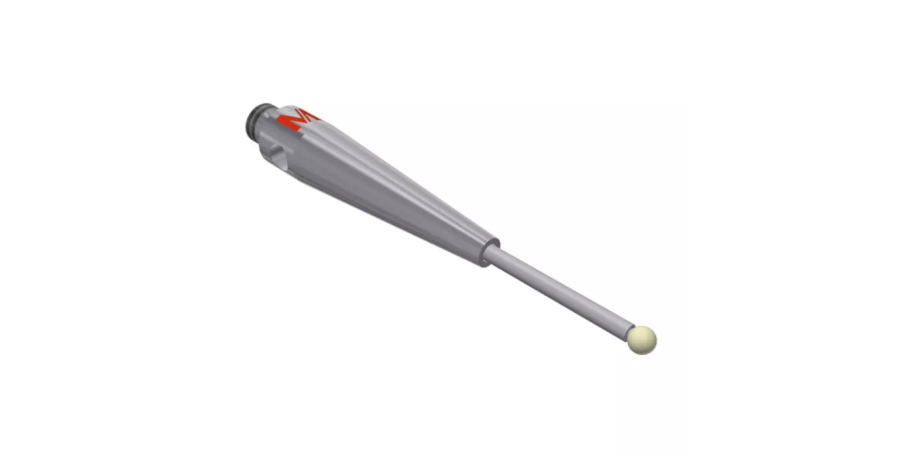

Dotyk M2 gulička z oxidu zirkónia Ø1,0mm 01-M2-Z1-L20-ML-7-SWC0,7-BS3 MITUTOYO (K651427)
| Pôvodná cena | 98 EUR |
| Vaša cena bez DPH | 87 EUR |
87 EUR / ks | |
Nie je na sklade
| DPH: | 23% |
| Jednotka: | ks |
| Kód 1: | K651427 |
| Značka: | Mitutoyo |
Popis
Straight styli are used to detect easily reachable features on the measured surface. Because of the specific surface properties of contact points made of zirconium oxide - a ceramic compound with high wear resistance – they are acknowledged as the best choice for aggressive scanning of abrasive surfaces, such as workpieces made of cast iron. Zirconium oxide provides a smooth and frictionless sliding performance on rough surfaces. Bend-resistant styli stems made of tungsten carbide are ideal for virtually all standard applications in the measuring lab with its high rigidity properties.
| Description protocol system: | 01-M2-Z1-L20-ML-7-SWC0,7-BS3 |
| Thread: | M2 |
| Ball Material: | oxid zirkoničitý |
| Kulička ø: | 1 mm |
| Ball Grade DIN 5401: | Grade 5 |
| Materiál základny: | Nerez ocel |
| Tool Bore Ø: | 1,3 mm |
| Shaft stem material: | tvrdokov |
| Využitelná délka: | 7 mm |
| Renishaw Code No.: | A-5004-0435 |
| Hmot.: | 0,48 g |
Technická špecifikácia
Parametry produktu
| Závit |
Závit
M2 |
| Průměr |
Průměr
1 |
| Délka |
Délka
20 |
| Jednotka |
Jednotka
mm |
| Materiál |
Materiál
oxid zirkoničitý |
